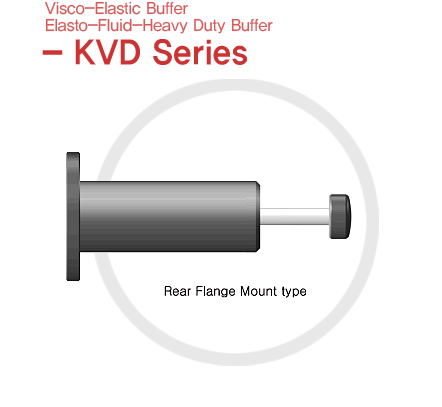

KVD系列
Model | Stroke (mm) S |
Max.Energy / Cycle (Nm) ET |
Dyn. Reaction Force (kN) |
Impact Velocity (m/s) |
Weight (kg) |
|
---|---|---|---|---|---|---|
RDmin | RDmax | max | ||||
KESM 25-12 | 12 | 0.1 | 6 | 11 | 2 | 0.3 |
KESM 35-22 | 22 | 0.4 | 14 | 27 | 4 | 0.7 |
KESM 40-22 | 22 | 0.4 | 14 | 27 | 5 | 0.8 |
KESM 50-35 | 35 | 1.5 | 28 | 60 | 5 | 1.9 |
KESM 60-35 | 35 | 1.5 | 28 | 60 | 5 | 2 |
KESM 75-45 | 45 | 3.5 | 45 | 100 | 5 | 5 |
KESM 90-60 | 60 | 7 | 90 | 150 | 5 | 10.5 |
KESM 110-80 | 80 | 14 | 130 | 230 | 5 | 17 |
KES E116-105 | 105 | 25 | 167 | 310 | 4 | 25 |
KESE 155-130 | 130 | 50 | 260 | 500 | 4 | 37 |
KESE 160-140 | 140 | 75 | 400 | 700 | 4 | 45 |
KESE 180-160 | 160 | 100 | 470 | 820 | 4 | 73 |
KESE 215-180 | 180 | 150 | 640 | 1,100 | 4 | 117 |
KESS 50-150 | 150 | 6 | 25 | 50 | 3 | 4.2 |
KESS 75-150 | 150 | 12 | 66 | 100 | 3 | 11 |
KESS 75-200 | 200 | 12 | 42 | 78 | 3 | 11 |
KESS 90-200 | 200 | 25 | 95 | 150 | 3 | 20 |
KESS 90-270 | 270 | 25 | 66 | 112 | 3 | 25 |
KESS 110-275 | 275 | 50 | 118 | 230 | 3 | 40 |
KESS 110-400 | 400 | 50 | 75 | 150 | 3 | 40 |
KESS 110-400H | 400 | 100 | 175 | 320 | 3 | 65 |
KESS 110-600 | 600 | 100 | 85 | 230 | 3 | 65 |
KESS 110-800 | 800 | 150 | 80 | 250 | 3 | 115 |
KESH 130-400 | 400 | 100 | 190 | 310 | 3 | 63 |
KESH 140-500 | 500 | 150 | 200 | 380 | 3 | 90 |
KESH 140-400H | 400 | 220 | 380 | 685 | 3 | 100 |
KESH 155-650 | 650 | 250 | 270 | 490 | 3 | 135 |
KESH 175-850 | 850 | 400 | 330 | 600 | 3 | 218 |
KESH 200-1050 | 1,050 | 600 | 370 | 740 | 3 | 295 |
KESH 220-1200 | 1,200 | 800 | 430 | 860 | 3 | 420 |
KESH 230-1300 | 1,300 | 1,000 | 500 | 1,000 | 3 | 470 |
